Milas Bodrum Airport
Milas-Bodrum Airport (IATA: BJV, ICAO: LTFE) serves Bodrum and the south-western Aegean coast of Muğla province. It lies 35 km north-east of Bodrum, 18 km south-west of Milas and 75 km west of Muğla. Traffic is strongly seasonal: in summer the airport handles a large number of international charter and holiday flights in addition to the domestic network, while winter traffic is much lighter.
The airport has two parallel runways, 10L/28R (3,000 m × 45 m) and 10R/28L (2,940 m × 45 m), but only 10L/28R is used by civil traffic. RWY 10R/28L is used as a taxiway by civil aircraft and is used as a runway only in emergencies or when 10L/28R is closed for maintenance. Elevation is 21 ft and the transition altitude is 10,000 ft. The aerodrome is open H24 (ATS, customs and fuel all H24); fire-fighting category is 9.
All civil parking is on a single, long apron south of the runways, in front of the Domestic and International terminals; the General Aviation terminal is south-east of the apron next to the heliport. Military hook and net barriers are installed on 10L/28R, and the northern taxiways M1, M2 and M3 are used only by military traffic.
Scenery
Payware
There are several payware options depending on your simulator.
| Simulator | Developer | Publisher | Links |
|---|---|---|---|
| Microsoft Flight Simulator | JustSim | JustSim / SimMarket | FSElite (release news) |
| X-Plane | JustSim | JustSim / SimMarket | FSNews (release news) |
Freeware
There are freeware options as well, but quality may vary significantly.
| Simulator | Developer | Publisher | Links |
|---|---|---|---|
| Microsoft Flight Simulator | Community | FlightSim.to | FlightSim.to |
Preferential Runway System (PRS)
The term "Preferential Runway System (PRS)" indicates the runway that, at a particular time, is considered by the ATC unit to be the most suitable for use by aircraft expected to land at or take off from the aerodrome, taking into consideration aircraft performance, surface wind speed and its components. PRS operations contribute to the optimum use of airspace and aerodrome capacity.
The preferential runways for LTFE are RWY 10L and RWY 10R. Since 10R/28L is used as a taxiway, in practice this means RWY 10L is the default runway.
| RWYCC (Runway Condition Code) | Tail Wind Component (max) |
|---|---|
| RWYCC 6/6/6 (dry, maximum braking) | 10 KT (included) |
| RWYCC reported at least 5 on any third of the runway (worse than dry) | 5 KT (included) |
- In PRS operations, the wind criteria above are applied depending on the runway surface condition.
- During PRS operations, ATC also takes into account ground wind, traffic situation, local meteorological conditions, environmental restrictions, technical infrastructure, noise abatement, etc.
- PRS operations are not available when:
- the instrument approach/departure procedures for the preferred runway are not suitable for the existing weather,
- the preferred runway is dry (RWYCC 6/6/6) and the tailwind component is greater than 10 KT,
- RWYCC is reported at least 5 on any third of the preferred runway and the tailwind component is greater than 5 KT,
- RWYCC is reported at least 5 on any third and a NOTAM/equivalent information (may be in the RCR) states the runway is slippery,
- RWYCC is reported 4 or less on any third of the preferred runway,
- heavy rain, thunderstorm or wind shear is reported on the approach or climb path of the preferred runway,
- low visibility operations are in progress.
- When PRS is in use the ATIS will announce: "Preferential Runway Operations are in Progress".
- Pilots unable to comply with PRS must notify ATC when requesting start-up clearance, on first contact, or 20 minutes before ETA, whichever is earlier.
If you consider the runway in use unsuitable for safety or performance reasons, you may request another runway. ATC will accommodate the request at an appropriate time, but you may be subject to a long delay; ATC will tell you if the delay is expected to exceed 30 minutes.
Arrival Procedures
Milas-Bodrum is located inside the Milas (Bodrum) TMA, next to the Dalaman and İzmir TMAs. All published RNAV STARs are RNAV (GNSS) procedures and P-RNAV approval is required. Aircraft that filed PBN/D1, D2, O1 or O2 in their flight plan must fly the RNAV STARs. If you cannot comply with the RNAV procedure, report it on first contact. Conventional STARs based on the BDR VOR/DME also exist (see Conventional STARs).
On first contact with Bodrum Radar, report your callsign only (unless you are unable to fly the RNAV procedure). Check the ATIS to confirm that the published frequency is the one currently in use.
- RADAR service is required for the RNAV STARs. ATC may clear you "direct to" a waypoint on the STAR for sequencing or separation; after reaching it, continue with the rest of the procedure.
- Descent on all RNAV STARs is "as cleared". Speed and altitude restrictions on the STARs must be flown as published (see the charts below).
- Aircraft vacating 10L/28R via a rapid exit taxiway have priority at taxiway intersections; all other traffic must give way.
- After landing, continue onto RWY 10R/28L (used as a taxiway) without stopping at the runway holding points, unless Tower instructs otherwise.
- Between 15 April and 15 October, training flights (circuits, touch-and-go, instrument approach practice) are not permitted. Between 15 September and 15 October, IFR training only (instrument navigation and ILS training) may be done with 24-hour prior coordination with Milas Bodrum Approach.
- Military hook and net barriers are installed on 10L/28R (barrier sheds 2.7 m high, 455 m inside both thresholds, 64.5 m north and south of the centreline). Follow ATC instructions regarding the serviceable barriers for the landing direction in use.
- Circling is not authorised north of the aerodrome (all approach charts). Circling OCA(H) is 1,600 ft (1,579 ft) for CAT A/B and 2,050 ft (2,029 ft) for CAT C/D (VOR/NDB A: 2,300 ft (2,279 ft) for all categories).
Low Visibility Procedure
Both ends of 10L/28R have an ILS CAT II (10L: IBDR 109.30, 28R: IGML 108.70) with CAT II approach lighting (900 m barrette system). The CAT II approaches are ILS Y CAT II RWY 10L (IAC-7, OCA(H) 132 ft (122 ft), RA 124 ft) and ILS V CAT II RWY 28R (IAC-10, OCA(H) 199 ft (178 ft), RA 178 ft); both require special aircrew and aircraft certification.
Runways and ILS
| Runway | ILS | Frequency | Category | Notes |
|---|---|---|---|---|
| 10L | IBDR | 109.30 MHz (GP 332.0, DME CH 30X) | CAT II | Preferential runway (PRS). GP 3.3°, RDH 52 ft, PAPI 3.3° (left, MEHT 52 ft). THR elev 10 ft |
| 28R | IGML | 108.70 MHz (GP 330.5, DME CH 24X) | CAT II | Steep glide path 3.9°, RDH 59 ft, PAPI 3.9° (left, MEHT 68 ft). THR elev 21 ft |
| 10R / 28L | No ILS | Runway normally used as taxiway. 10R: VOR Y approach; PAPI 3.3°. 28L: 440 m displaced threshold; PAPI 3.9° | ||
The RWY 28R ILS uses a steep 3.9° glide path. All 28R approach charts carry the caution "appropriate aircraft and crew qualifications are required". AD 2.22 states that commercial air transport operators shall consider LTFE a Category B aerodrome (EASA AMC1 ORO.FC.105) for the RWY 28R steep ILS (CAT I and CAT II). Plan a stabilised approach and check your aircraft's steep-approach limits.
Other navaids: BDR VOR/DME 116.7 (CH 114X) and BDR NDB 389 kHz, co-located north-west of the 10L threshold, and TACAN BOD (CH 69X).
Declared distances
| RWY | TORA (m) | TODA (m) | ASDA (m) | LDA (m) | Remarks |
|---|---|---|---|---|---|
| 10L | 3,000 | 3,000 | 3,000 | 3,000 | |
| 28R | 3,000 | 3,000 | 3,000 | 3,000 | |
| 10R | 2,940 | 2,940 | 2,940 | 2,940 | Taxiway in normal operations |
| 28L | 2,940 | 2,940 | 2,940 | 2,500 | 440 m displaced threshold; taxiway in normal operations |
Intersection take-off distances are listed under Taxi Procedures.
STARs
RNAV STARs start at OKESA, ERFES, TUFUB, OZNEF, YUNUS and KAVAK. These fixes must be the last point of your flight-planned route (e.g. ... UW78 CRD UW95 TAVAS UW95 KAVAK).
| Active Runway Configuration | Designator | Ends at | Remarks |
|---|---|---|---|
| West (RWY 10L) | 1F | ROXEP | KAVAK, ERFES, YUNUS, OZNEF and TUFUB |
| 1H | ROXEP | OKESA 1H | |
| East (RWY 28R) | 1J | TEKBU | KAVAK, ERFES, YUNUS, OZNEF and TUFUB |
| 1P | TEKBU | OKESA 1P |
There is only one STAR per entry point and runway, so no "default designator" choice is needed.

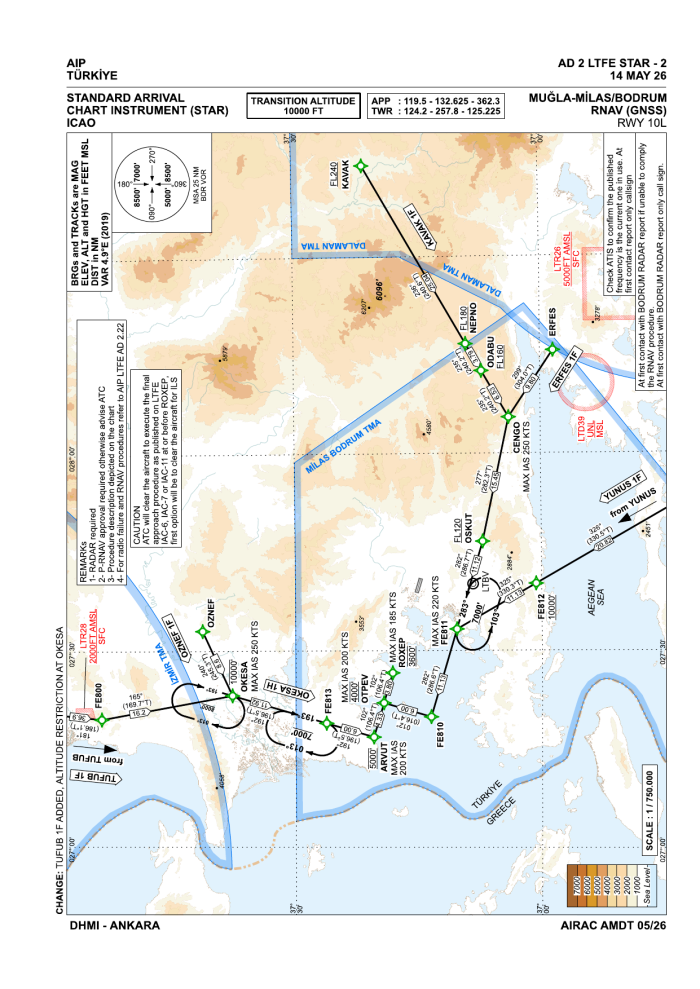

West Configuration (RWY 10L)
All arrivals end at ROXEP (3,600 ft, max 185 KT) on the extended centreline, then heading 102°.
- From the north (OKESA 1H, OZNEF 1F, TUFUB 1F): cross OKESA at or below 10,000 ft (max 250 KT), then FE813, ARVUT at 5,000 ft (max 200 KT) and OTPEV at 4,000 ft to ROXEP. TUFUB 1F routes via FE800 to OKESA.
- From the east (KAVAK 1F, ERFES 1F): via CENGO (max 250 KT), OSKUT at or above FL120, FE811 (max 220 KT) and FE810 to OTPEV (4,000 ft, max 200 KT). KAVAK 1F also has crossing restrictions of FL240+ at KAVAK, FL180+ at NEPNO and FL160+ at ODABU.
- From the south (YUNUS 1F): via FE812 at or above 10,000 ft, FE811 (max 220 KT) and FE810 to OTPEV (4,000 ft, max 200 KT).
The STAR chart states that ATC's first option will be to clear you for the final approach ILS (IAC-6 / IAC-7) or RNP (IAC-11) RWY 10L at or before ROXEP. Check the ATIS for the approach in use.

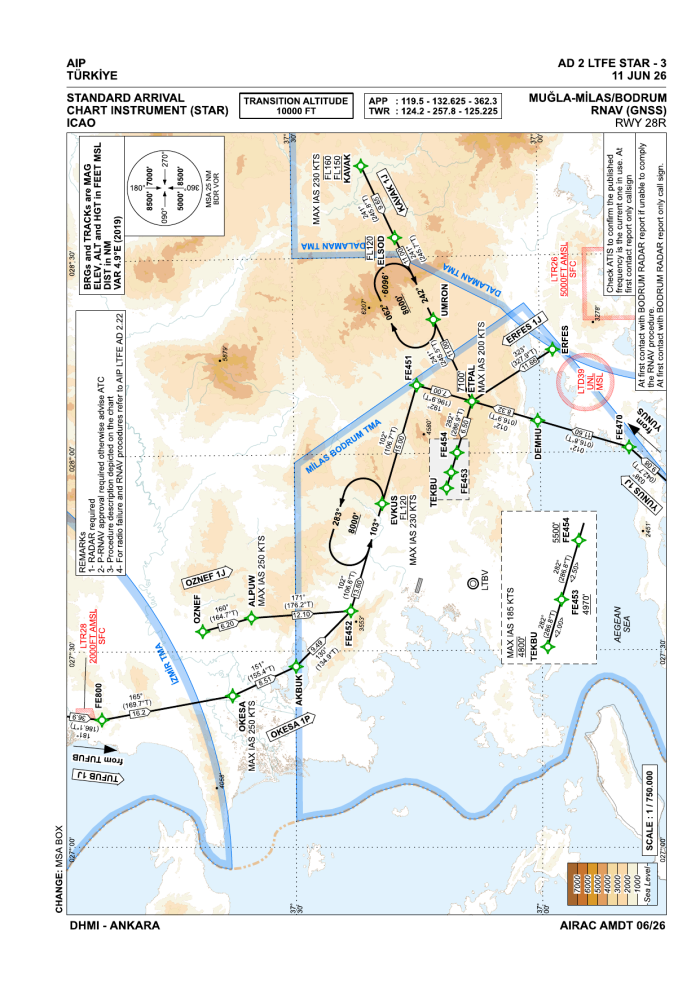

East Configuration (RWY 28R)
All arrivals end at TEKBU (4,800 ft, max 185 KT) on the extended centreline, then heading 282°. All routes join at ETPAL (7,100 ft, max 200 KT), then FE454 (5,500 ft or above) and FE453 (4,970 ft or above) to TEKBU.
- From the north (OKESA 1P, TUFUB 1J, OZNEF 1J): a long route east of the airport. OKESA 1P and TUFUB 1J (via FE800) cross OKESA at max 250 KT and continue via AKBUK; OZNEF 1J routes via ALPUW (max 250 KT). All three then continue via FE452, EVKUS (FL120 or above, max 230 KT) and FE451 to ETPAL.
- KAVAK 1J: cross KAVAK between FL150 and FL160 (max 230 KT), ELSOD at FL120, then UMRON to ETPAL.
- ERFES 1J: ERFES direct to ETPAL.
- YUNUS 1J: via FE470 and DEMHU to ETPAL.

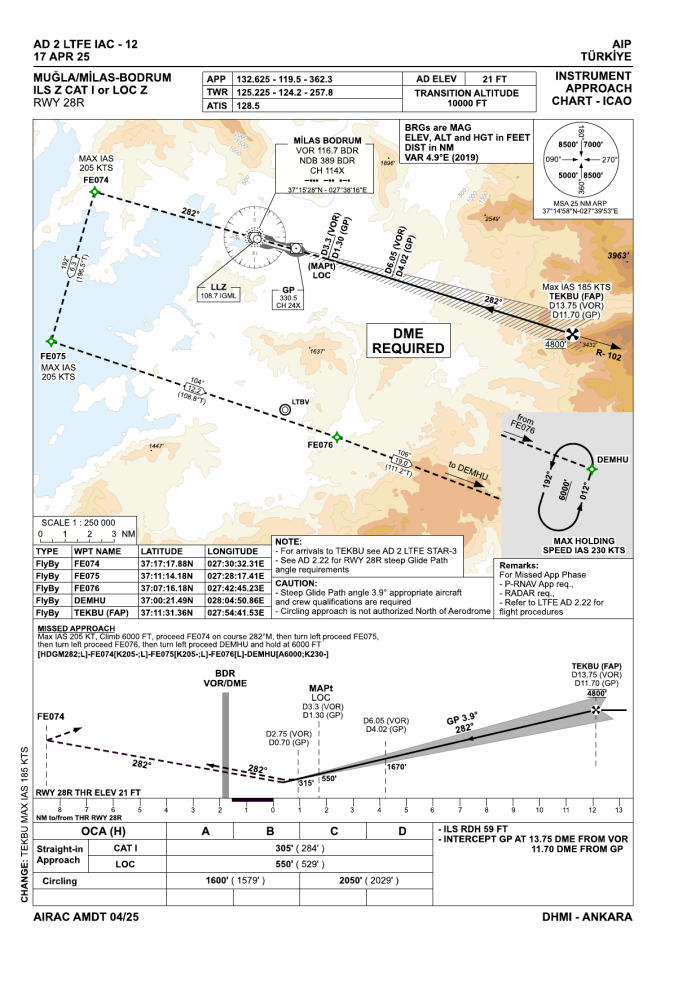

TEKBU is the FAP of the ILS Z / LOC Z RWY 28R (IAC-12), which is published for arrivals via the RNAV STARs (steep 3.9° glide path). Check the ATIS for the approach in use.
Conventional STARs
For aircraft without P-RNAV approval, three conventional STARs (AD 2 LTFE STAR-1) lead to the BDR VOR/DME:
| STAR | Route |
|---|---|
| AKBUK 1S | AKBUK (BDR R-324/D17) – track 144° to BDR, 6,000 ft (5,000 ft from BDR D4) |
| CENGO 1S | CENGO (BDR R-112/D25) – track 292° to BDR, 7,000 ft |
| YUNUS 1S | YUNUS (BDR R-155/D35) – track 355° to BDR, 6,000 ft |
Holding patterns at BDR: west of the VOR at 5,000 ft (inbound 102° and 097°) and east of the VOR at 6,000 ft (inbound 282°); max holding speed 230 KT.
Instrument Approaches
| Runway | Approach | Chart | Notes |
|---|---|---|---|

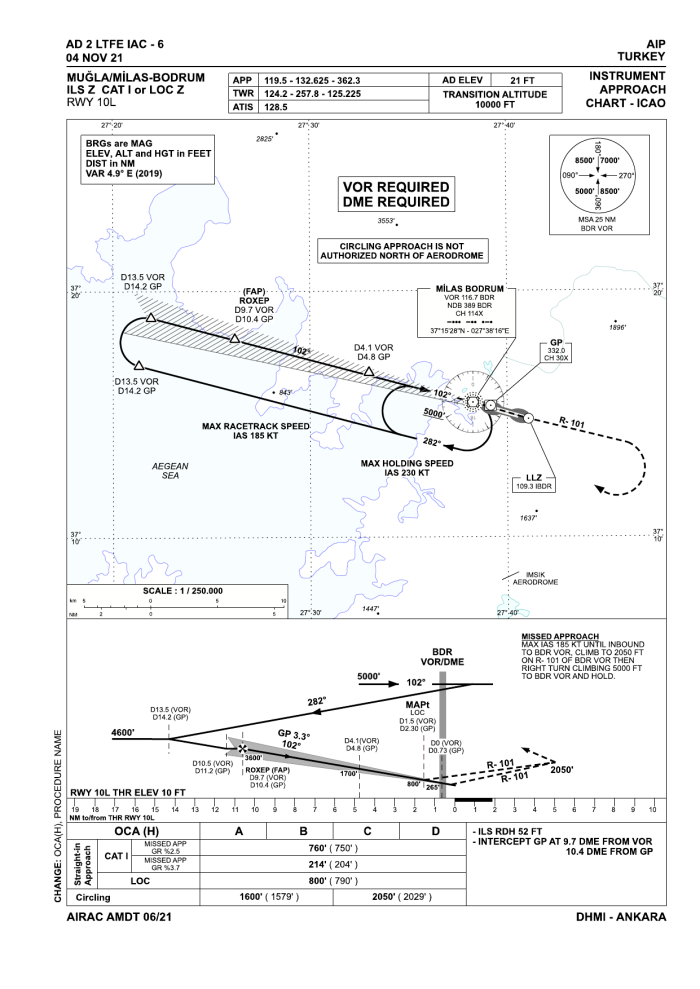

| 10L | ILS Z CAT I or LOC Z | IAC-6 | Linked to the RNAV STARs (FAP ROXEP). VOR and DME required. CAT I OCA(H) 760 ft (750 ft) with a 2.5% missed approach gradient, 214 ft (204 ft) with 3.7%; LOC 800 ft (790 ft) |
| ILS Y CAT II | IAC-7 | Special aircrew and aircraft certification required. OCA(H) 132 ft (122 ft) with a 3.7% missed approach gradient | |
| RNP (LNAV) | IAC-11 | GNSS / RNP APCH approval required; inform Bodrum Radar on first contact if you request it. FAF ROXEP | |
| VOR Z | IAC-4 | DME required. OCA(H) 800 ft (790 ft) | |
| 10R | VOR Y | IAC-5 | DME required. OCA(H) 800 ft (790 ft) |
| 28R | ILS Z CAT I or LOC Z | IAC-12 | Linked to the RNAV STARs (FAP TEKBU); RNAV missed approach (P-RNAV approval and RADAR required). DME required. CAT I OCA(H) 305 ft (284 ft), LOC 550 ft (529 ft) |
| ILS X CAT I or LOC X | IAC-8 | Conventional, racetrack from BDR VOR. VOR and DME required. Same OCA(H) as IAC-12 | |
| ILS W CAT I or LOC W | IAC-9 | As IAC-8, but racetrack at D18.1 BDR and missed approach holding at NATKU | |
| ILS V CAT II | IAC-10 | Special aircrew and aircraft certification required. OCA(H) 199 ft (178 ft) | |
| Circling only | VOR/NDB A, VOR B, NDB B | IAC-1, IAC-2, IAC-3 | Straight-in not authorised. VOR/NDB A and NDB B are flown towards 10L, VOR B towards 28R |
OCA(H) values are given as altitude (height). The ILS 10L FAP is ROXEP at 3,600 ft (D9.7 BDR / D10.4 IBDR); the ILS 28R FAP is TEKBU at 4,800 ft (D13.75 BDR / D11.70 IGML).
Missed approaches (main procedures)
- ILS Z / ILS Y RWY 10L (IAC-6, IAC-7): max IAS 185 KT until inbound to BDR VOR. Climb to 2,050 ft on R-101 BDR, then right turn climbing to 5,000 ft to BDR VOR and hold.
- RNP RWY 10L (IAC-11): climb to 6,000 ft; from MA10 to FE603 max 185 KT, turn left to FE604, turn left to FE605, then FE813 at or above 6,000 ft and hold.
- ILS Z RWY 28R (IAC-12): max IAS 205 KT, climb to 6,000 ft, proceed to FE074 on course 282°M, turn left to FE075, turn left to FE076, then turn left to DEMHU and hold at 6,000 ft.
- ILS X / ILS V RWY 28R (IAC-8, IAC-10): climb to 3,000 ft on R-282 BDR, then left turn climbing to 6,000 ft to BDR VOR and hold. ILS W (IAC-9) is the same, but after BDR proceed to NATKU and hold.
Holding fixes
All holdings have a maximum IAS of 230 KT.
| Fix | Inbound track | Altitude | Used by |
|---|---|---|---|
| BDR VOR | 102° | 5,000 ft | ILS Z / Y RWY 10L, VOR Z 10L (initial approach and missed approach) |
| BDR VOR | 282° | 6,000 ft | ILS X / V RWY 28R, VOR B (initial approach and missed approach) |
| DEMHU | 012° | 6,000 ft | ILS Z RWY 28R missed approach |
| NATKU | 282° | 6,000 ft | ILS W RWY 28R (holding and missed approach) |
| FE813 | 193° | 6,000 ft | RNP RWY 10L missed approach |
Minimum Sector Altitude
The 25 NM MSA is centred on the BDR VOR (on IAC-12, on the aerodrome reference point):
- North-west sector: 8,500 ft
- North-east sector: 7,000 ft
- South-east sector: 8,500 ft
- South-west sector: 5,000 ft
Minimum radar vectoring altitudes (AD 2 LTFE MRVC, based on the İzmir/Akdağ radar) range from 3,600 ft to 8,000 ft.
Terrain, Obstacles and Restricted Areas
- The approach charts show high ground close to both final approaches, with spot heights of 3,553 ft north of the RWY 10L final approach and 3,963 ft north of the RWY 28R final approach.
- The Aerodrome Obstacle Chart (AOC-1) notes high ground beyond the take-off flight area, rising to 660 m at 19,000 m and 1,250 m at 28,000 m, and high ground of 430 m at 20,000 m.
- Restricted areas LTGULLUK1 (SFC–1,500 ft AMSL) and LTGULLUK2 (SFC–500 ft AMSL) lie under the RWY 10L final approach; restricted areas LTR26 (SFC–5,000 ft AMSL) and LTR28 (SFC–2,000 ft AMSL) and danger area LTD39 (MSL–UNL) are shown on the SID/STAR charts.
Bird Hazard
The bird concentration chart (AD 2 LTFE BRD) shows cormorant, flamingo, seagull, duck and heron concentrations around the western end of the runways and in the bay to the south-west, and starlings on the aerodrome in January and February. Fish breeding pools and garbage dump areas around the airport attract birds. Seasonal bird movements at 500–1,500 ft (December and February) cross the aerodrome along a north-north-west / south-east line.
Radio Failure
For IFR flights to LTFE (AD 2.22), squawk 7600 and:
- Outside the TMA: follow the flight plan route at the last assigned and acknowledged flight level. After passing UMRON, OKESA or ERFES, fly the relevant STAR for 3 minutes, then proceed to BDR VOR descending to 9,000 ft. Descend to 6,000 ft over BDR VOR, then fly the instrument approach and land.
- Inside the TMA, at or above 6,000 ft: follow the last assigned and acknowledged ATC instructions for 3 minutes, then proceed to BDR VOR descending to 6,000 ft. Leave BDR at 6,000 ft for the instrument approach and land.
- Inside the TMA, below 6,000 ft and at or above 5,000 ft: climb to 6,000 ft and proceed to BDR VOR, leave BDR at 6,000 ft for the instrument approach and land.
- Below 5,000 ft: proceed to the relevant final approach fix and land.
Ground Operations

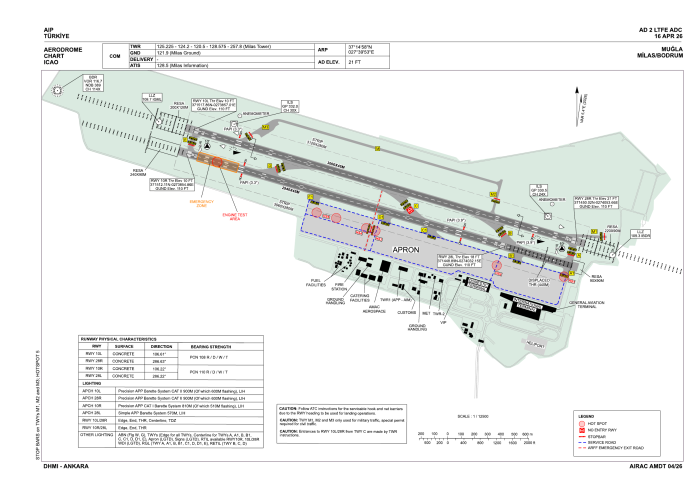

Ground Layout
In normal operations RWY 10L/28R (north) is the only active runway. RWY 10R/28L (south) is used as a parallel taxiway between the apron and the active runway. The apron is connected to 10R/28L by TWYs A1, B1, C1, D1 and E1, and 10R/28L is connected to 10L/28R by TWYs A, B, C, D and E:
- A (east end) and E (west end) are the full-length entries for RWY 28R and RWY 10L.
- B, C and D are rapid exit taxiways (RETIL installed).
- Entry to 10L/28R from TWY C is only by Tower instruction (no-entry sign on the chart).
- TWY E1 may only be used by aircraft with a wingspan of 31 m or less (most airliners, e.g. A320/B737, cannot use it).
- TWYs M1, M2 and M3 (north side) are only used by military traffic; civil traffic needs a special permit.
- Stop bars are installed at TWYs A, B, D, E, M1, M2 and M3; runway guard lights at TWYs A, B, D, E, A1, B1, C1 and D1.
- The engine test area is at the RWY 10R threshold (west end of 10R/28L).
- Reversing using reverse thrust is prohibited.

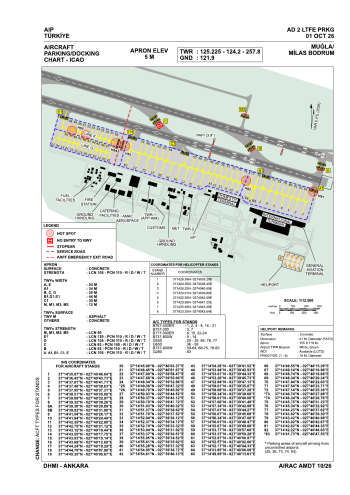

Apron, Gates and Stands
There is one long apron (elevation 5 m). The International Terminal is at the eastern end of the apron with the Domestic Terminal just west of it; the general aviation stands (25–58) are at the western end. The General Aviation terminal itself is south-east of the apron, next to the heliport.
Commercial stands
| Stands | Largest aircraft type (PRKG) |
|---|---|
| 8, 15, 22–24 | B777-300ER |
| 1, 2, 4–6, 16–21 | B767-400ER |
| 3, 7 | B757-300 |
| 9–14 | B737-800W |
| 59–64, 66–75, 78–82 | B737-900W |
- An automatic visual docking guidance system is available at stands 1–8, 8A and 8B. At docking stands, switch the APU off within 5 minutes of parking; it may be started 15 minutes before estimated start-up.
- Push-back is mandatory on all apron stands (except aircraft of 0–2 tonnes).
General Aviation stands
- Stands 25–58 are for general aviation aircraft with a maximum wingspan of 31 m (PRKG: G550 on 25–35, G650 on 36–58).
- On the commercial part of the apron, stands 65, 76, 77 (G550) and 83 (G280) are business-jet sized.
- Aircraft using stands 38–47 enter via TWY LINE G. They may exit to TWY LINE K under the pilot's responsibility, with Tower permission and a ground-handling escort.
- Aircraft arriving from uncontrolled aerodromes must declare this to Tower and will be parked on stands 25, 26, 73, 74 or 83 for security checks.
De-icing
No de-icing facilities are available at LTFE.
Hot Spots
| Hot Spot | Location | Caution |
|---|---|---|
| HS1 | Apron → TWY A1 (east end) | Apron taxiway centreline crosses the vehicle service road |
| HS2 | Apron taxiway near stands 8A, 8B, 75, 76 | Service road crossing; forward manoeuvres and push-backs from stands 8A, 8B, 75, 76 |
| HS3 | Apron, near TWY D1 | North–south service road crosses the apron taxiway (Cat D/E stands to the east, Cat A/B/C stands to the west) |
| HS4 | Apron / TWY D1 area | ARFF emergency exit road crosses the apron and RWYs 10L/R |
| HS5 | GA apron, stands 38–47 | Service road in front of stands 38–47 when taxiing out to LINE K |
Planning Taxi Time
Taxi times depend on the runway in use, as all traffic uses 10R/28L as the parallel taxiway:
- RWY 10L: departures taxi west along 10R/28L to TWY E; aircraft parked at the International Terminal (east end) have the longest taxi.
- RWY 28R: departures taxi east along 10R/28L to TWY A; General Aviation stands (west end) have the longest taxi.
ATIS
Milas Information is broadcast on 128.500 MHz (D-ATIS via ACARS also available). When PRS is in use the ATIS announces "Preferential Runway Operations are in Progress". Always copy the ATIS before calling Ground.
Obtaining Clearance
There is no separate Delivery position (the ADC lists no Delivery frequency). Call Milas Ground (121.900) for your ATC clearance. In your initial call, include your callsign, stand, destination and the ATIS letter you have received.
Pushback and Engine Start
Push-back is mandatory on all apron stands. Call Ground with your callsign and stand number when you are fully ready. Ground will either clear you or ask you to standby.
- Stands 38–47 (GA): exit is to LINE K with Tower permission and a ground-handling escort.
- Engine runs at idle on a stand (max 3 minutes) must be requested from Milas Ground.
Taxi Procedures
Departures normally taxi from the apron via A1, B1, C1 or D1 onto 10R/28L (used as taxiway) and then to holding point E for RWY 10L, or A for RWY 28R. The AIP publishes declared distances for intersection take-offs (AD 2.13):
| Runway | Intersection | TORA |
|---|---|---|
| 10L | Full length (E) | 3,000 m |
| D | 2,050 m | |
| C | 1,490 m | |
| 28R | Full length (A) | 3,000 m |
| B | 2,200 m | |
| C | 1,680 m |
Entry to RWY 10L/28R from TWY C is only by Tower instruction.
Phraseology to be Used for Taxi
Pilot: Milas Ground, THY2RK, stand 18, request taxi.
GND: THY2RK, Milas Ground, taxi to holding point E runway 10L via C1 and runway 10R/28L.
Pilot: Taxi to holding point E runway 10L via C1 and runway 10R/28L, THY2RK.
(approaching the holding point)
GND: THY2RK, contact Milas Tower 124.200.
Pilot: Milas Tower 124.200, THY2RK.

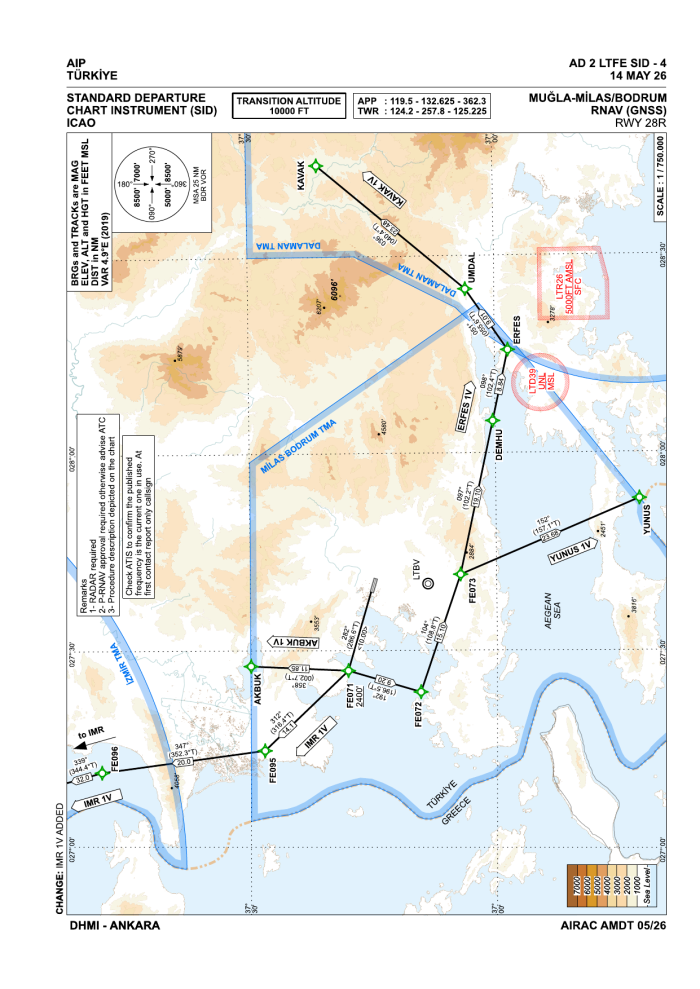

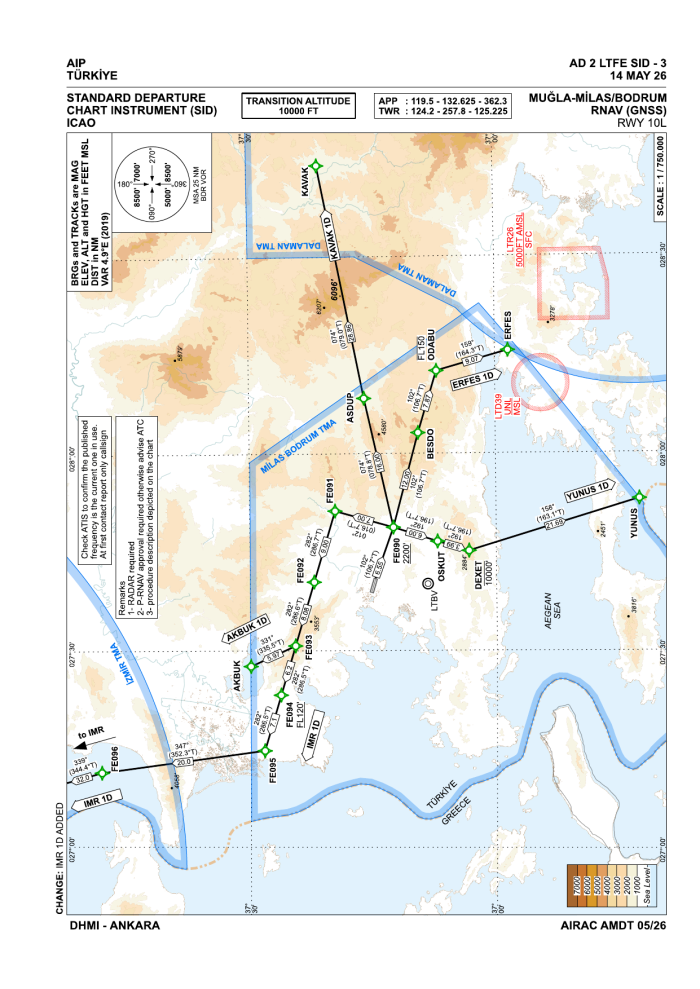

Departure Procedures
RECAT - LTFE
Turkish airspace uses wake turbulence re-categorisation (RECAT-EU). More information on SkyBrary.
| RECAT LTFE | Follower | ||||||
|---|---|---|---|---|---|---|---|
| Super Heavy (A) | Upper Heavy (B) | Lower Heavy (C) | Upper Medium (D) | Lower Medium (E) | Light (F) | ||
| Leader | A Super Heavy | 80s | 100s | 120s | 140s | 160s | 180s |
| B Upper Heavy | 80s | 80s | 80s | 100s | 120s | 140s | |
| C Lower Heavy | 80s | 80s | 80s | 80s | 100s | 120s | |
| D Upper Medium | 80s | 80s | 80s | 80s | 80s | 120s | |
| E Lower Medium | 80s | 80s | 80s | 80s | 80s | 100s | |
| F Light | 80s | 80s | 80s | 80s | 80s | 80s | |
Minimum Runway Occupancy Time for Departures
The AIP AD 2.20 for LTFE does not publish specific runway occupancy rules for departures. As at any single-runway airport, be fully ready when you reach the holding point and expect an immediate take-off clearance in busy periods.
SIDs
P-RNAV approved aircraft (PBN/D1, D2, O1 or O2) must fly the RNAV (GNSS) SIDs. RNAV SIDs end at AKBUK, YUNUS, ERFES, KAVAK and IMR, which must be the first point of your flight-planned route (e.g. KAVAK UW95 ...). If you are not P-RNAV approved, advise ATC. RADAR service is required. ATC may clear you "direct to" a SID waypoint; after reaching it, continue with the rest of the SID.
| Runway | SID | Route (abbreviated) | Minimum climb gradient | Restrictions |
|---|---|---|---|---|
| 10L | AKBUK 1D | FE090 – FE091 – FE092 – FE093 – AKBUK | 6.5% up to 6,000 ft | FE090 at or above 2,200 ft |
| KAVAK 1D | FE090 – ASDUP – KAVAK | 6.5% up to 6,000 ft | FE090 at or above 2,200 ft | |
| IMR 1D | FE090 – FE091 – FE092 – FE093 – FE094 – FE095 – FE096 – IMR | 6.5% up to 6,000 ft | FE090 at or above 2,200 ft; FE094 at or above FL120 | |
| YUNUS 1D | FE090 – OSKUT – DEXET – YUNUS | 6.0% up to 6,000 ft | FE090 at or above 2,200 ft; DEXET at or below 10,000 ft | |
| ERFES 1D | FE090 – BESDO – ODABU – ERFES | 6.0% up to 6,000 ft | FE090 at or above 2,200 ft; ODABU at or below FL150 | |
| 28R | AKBUK 1V | FE071 – AKBUK | 4% (245 ft/NM) up to 2,400 ft | FE071 at or above 2,400 ft |
| YUNUS 1V | FE071 – FE072 – FE073 – YUNUS | |||
| ERFES 1V | FE071 – FE072 – FE073 – DEMHU – ERFES | |||
| KAVAK 1V | FE071 – FE072 – FE073 – DEMHU – ERFES – UMDAL – KAVAK | |||
| IMR 1V | FE071 – FE095 – FE096 – IMR |
All RNAV SIDs start with a climb on course 102°M (10L) to FE090 or 282°M (28R) to FE071 before the first turn. Note the high climb gradients (6.0–6.5% up to 6,000 ft) for RWY 10L. On first contact after departure, report your callsign only (SID chart remark).
Conventional SIDs
Conventional SIDs based on the BDR VOR/DME (AD 2 LTFE SID-1 and SID-2) are available for aircraft without P-RNAV approval:
| Runway | SID | Description | Climb gradient |
|---|---|---|---|
| 10L/R | AKBUK 1B | Intercept R-102, at D9 turn right to BDR VOR, then right to intercept R-324 to AKBUK | 5.5% (335 ft/NM) until passing the VOR; max IAS 204 KT until turning inbound to the VOR |
| AKBUK 1N | Intercept R-102, at D11 follow the 11 DME arc left to intercept R-324 to AKBUK | 5.7% (346 ft/NM) until intercepting R-324 | |
| YUNUS 1B | Intercept R-102, at D9 follow the 9 DME arc right to intercept R-155 to YUNUS | 5.7% (346 ft/NM) until crossing 6,000 ft; max IAS 204 KT until intercepting R-155 | |
| CENGO 1B | Intercept R-112 to CENGO | 5.5% (335 ft/NM) until joining the airway | |
| 28L/R | AKBUK 1A | Intercept R-279, at D7 turn left to BDR VOR, then left to intercept R-324 to AKBUK | 5% (304 ft/NM) until passing the VOR |
| AKBUK 1E | Intercept R-279, at D12 follow the 12 DME arc right to intercept R-324 to AKBUK | 5% (304 ft/NM) until the 12 DME fix | |
| YUNUS 1A | Intercept R-279, at D7 follow the 7 DME arc left to intercept R-155 to YUNUS | 5% (304 ft/NM) until intercepting R-155 | |
| CENGO 1A | Intercept R-279, at D7 turn left to BDR VOR, then R-112 to CENGO | 5% (304 ft/NM) until passing the VOR | |
| CENGO 1E | Intercept R-279, at D7 follow the 7 DME arc left to intercept R-112 to CENGO | 5% (304 ft/NM) until intercepting R-112 |
Noise Abatement Procedures
Aircraft certified to ICAO Annex 16 Vol. I Chapter 3 must apply NADP-2; Chapter 2 aircraft apply NADP-1 only. All other aircraft apply NADP-1 or NADP-2. Noise abatement procedures apply until passing 3,000 ft.
Airborne
Unless instructed otherwise, contact Bodrum Radar when airborne. On first contact, report your callsign only (as printed on the SID charts). Comply with all speed and altitude restrictions on the SID.
TWR: THY2RK, contact Bodrum Radar 119.500, goodbye.
Pilot: Bodrum Radar 119.500, THY2RK, goodbye.
Pilot: Bodrum Radar, THY2RK.
APP: THY2RK, Bodrum Radar, radar contact, climb FL150.
After Departure
After leaving the Milas TMA you will be handed over to Ankara Control, or to the adjacent Dalaman / İzmir sectors, depending on your SID and route.
Thank you for flying with TRvACC — hope to see you again in Bodrum!
VFR Procedures

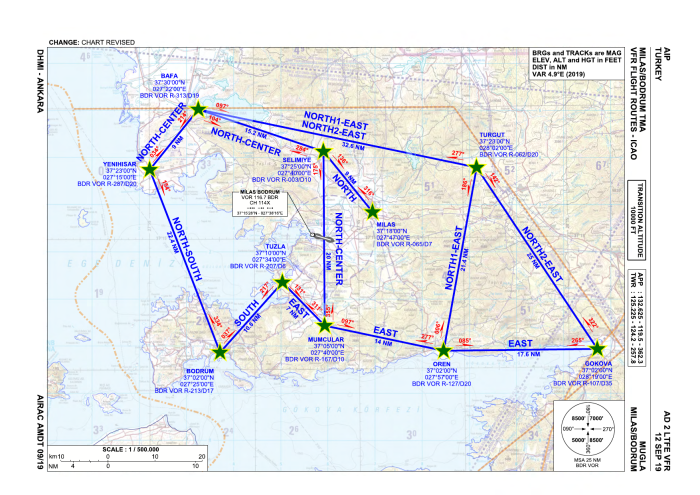

The Milas/Bodrum TMA has designated VFR routes. They are not used for separating VFR from IFR traffic; the pilot remains responsible for separation from other traffic, terrain and weather. If you have to leave a VFR route (e.g. due to weather), inform ATC immediately and rejoin as soon as possible. VFR traffic shall not pass through the CTR (Milas CTR: 5 NM radius centred 371456N 0274058E, SFC–2,500 ft AMSL) unless authorised by Tower. VFR traffic without radio destined to an aerodrome in the Milas TMA shall enter the CTR via these routes without affecting the instrument approach, missed approach and SID routes.
Arrivals join the route at the nearest of these entry points after entering the TMA:
| Route | Points |
|---|---|
| SOUTH | BODRUM – TUZLA |
| EAST | GÖKOVA – ÖREN – MUMCULAR – TUZLA |
| NORTH | BAFA – SELİMİYE – MİLAS |
Departures fly the same routes in the opposite direction.
Transit routes through the TMA:
| Route | Points |
|---|---|
| NORTH – SOUTH | BAFA – YENİHİSAR – BODRUM |
| NORTH1 – EAST | BAFA – TURGUT – ÖREN |
| NORTH2 – EAST | BAFA – TURGUT – GÖKOVA |
| NORTH – CENTER | BAFA – SELİMİYE – MUMCULAR – ÖREN – GÖKOVA |
State aircraft on operational (OAT) flights are exempt.
VFR reporting points (BDR VOR radial/distance): BAFA (R-313/D19), YENİHİSAR (R-287/D20), SELİMİYE (R-003/D10), MİLAS (R-065/D7), TURGUT (R-062/D20), TUZLA (R-207/D6), BODRUM (R-213/D17), MUMCULAR (R-167/D10), ÖREN (R-127/D20), GÖKOVA (R-107/D35).
Frequencies
| Station | Callsign | Frequency |
|---|---|---|
| ATIS | Milas Information | 128.500 |
| Ground | Milas Ground | 121.900 |
| Tower | Milas Tower | 125.225 / 124.200 (others: 128.575, 120.500) |
| Approach | Milas Approach / Milas Radar (charts: Bodrum Radar) | 132.625 / 119.500 (others: 118.550, 134.475) |
Approach service is provided by Milas APP, or by Milas Tower when required or when transferred by Milas APP (AD 2.17). 121.5 MHz is available on Tower and Approach for emergencies.
References
All aeronautical data on this page is taken from the Türkiye AIP (DHMİ), AIRAC 2610. Use the current AIP for real-world navigation; this page is for flight simulation only.
- AIP Türkiye AD 2 LTFE (text, AD 2.1–AD 2.24), incl. AD 2.12 runway data, AD 2.13 declared distances, AD 2.17–2.19 airspace, communications and navaids, AD 2.20 local regulations, AD 2.21 noise abatement, AD 2.22 flight procedures (VFR routes, RNAV procedures, radio failure, PRS), AD 2.23 additional information
- AD 2 LTFE ADC – Aerodrome Chart (AIRAC AMDT 04/26)
- AD 2 LTFE PRKG – Aircraft Parking/Docking Chart (AIRAC AMDT 10/26)
- AD 2 LTFE AOC-1 – Aerodrome Obstacle Chart RWY 10L/28R
- AD 2 LTFE PATC-1 / PATC-2 – Precision Approach Terrain Charts RWY 10L / 28R
- AD 2 LTFE SID-1, SID-2 – conventional SIDs RWY 10L/R and 28L/R
- AD 2 LTFE SID-3/3A, SID-4/4A – RNAV (GNSS) SIDs RWY 10L and 28R (AIRAC AMDT 05/26)
- AD 2 LTFE STAR-1 – conventional STARs
- AD 2 LTFE STAR-2/2A, STAR-3/3A – RNAV (GNSS) STARs RWY 10L and 28R (AIRAC AMDT 05/26 and 06/26)
- AD 2 LTFE IAC-1 to IAC-12 – instrument approach charts (VOR/NDB A, VOR B, NDB B, VOR Z 10L, VOR Y 10R, ILS Z/Y 10L, ILS X/W/V/Z 28R, RNP 10L)
- AD 2 LTFE MRVC – Minimum Radar Vectoring Altitude Chart (AIRAC AMDT 09/26)
- AD 2 LTFE BRD – Bird Concentrations and Movements Chart
- AD 2 LTFE VFR – VFR Flight Routes, Milas/Bodrum TMA
